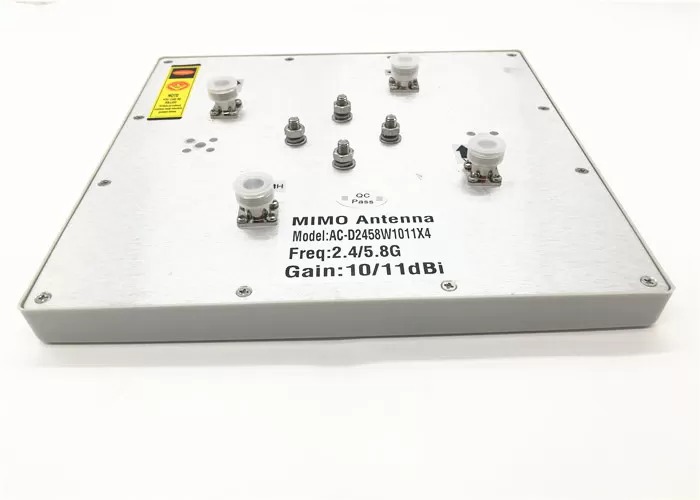

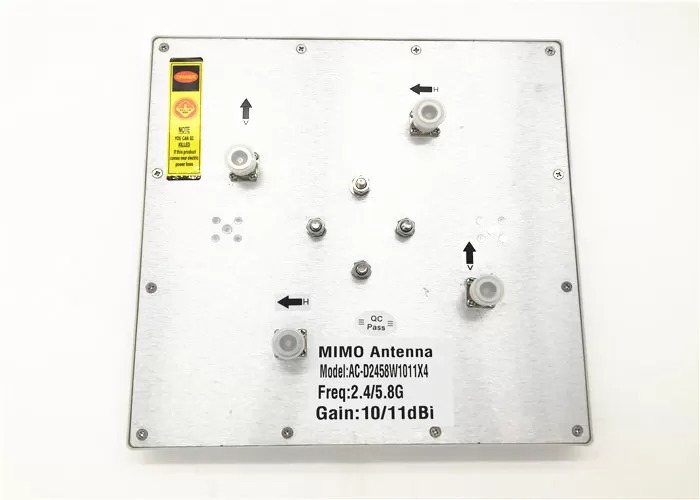

Dual Band 2.4G / 5.8G 4g Directional Antenna 250*250*25 MIMO Panel Antenna
SIA-AC-D2458W1011X4
- Frequency： 2400-2500MHz / 5150-5850MHz
- S.W.R： 2.0Max
- Impedance： 50OHM
- Connector： 4 X N Female
- Peak Gain： 10/11DB
- Size： 250 * 250 * 25
- Parameters
- Frequency： 2400-2500MHz / 5150-5850MHz
- S.W.R： 2.0Max
- Impedance： 50OHM
- Connector： 4 X N Female
- Peak Gain： 10/11DB
- Size： 250 * 250 * 25
Features
- Dual band 2.4/5.8GHz WLAN,WiFi MIMO system
- Direction
- N-Female Connector
- Vertical and Horizontal
- DC Grounded
- HG(high gain)
- Low VSWR
- Support the IEEE802.11 n
- Remote transmission
Specifications
| Frequency | 2400-2500MHz / 5150-5850MHz |
| Gain | 10 / 11dBi |
| Polarization | Vertical and Horizonta |
| Horizontal Beam | 360º |
| Vertical Beam | 30º |
| SWR | 2.0Max |
| Fronto Back Ratio | >25dB |
| Impedance | 50 OHM |
| Input Max Power | 100W |
| Lightning Protection | DC Ground |
| Connector | N-Female |
| Size | 250 * 250 * 25mm |
| Material | ABS |
| Diameter of the Pole | Φ30〜Φ50 |
| Mounting | pole |
| Operating temperature | -40〜+ 80℃ |
| Weight | 700g |
| Wind resistant | 60m/s |
